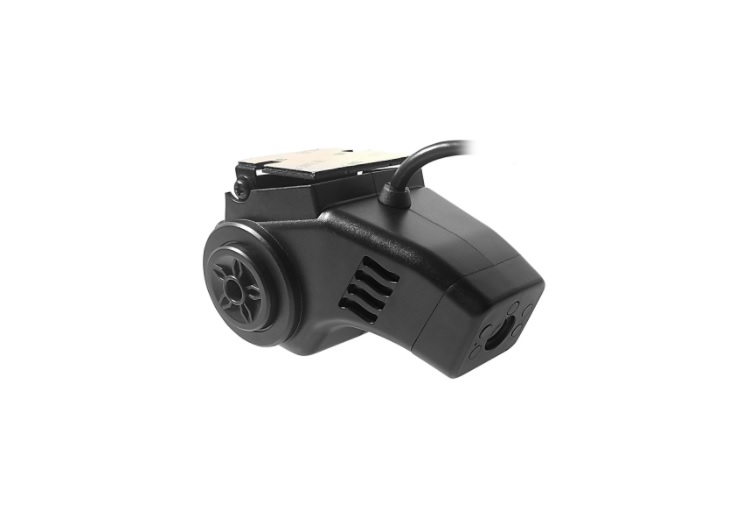

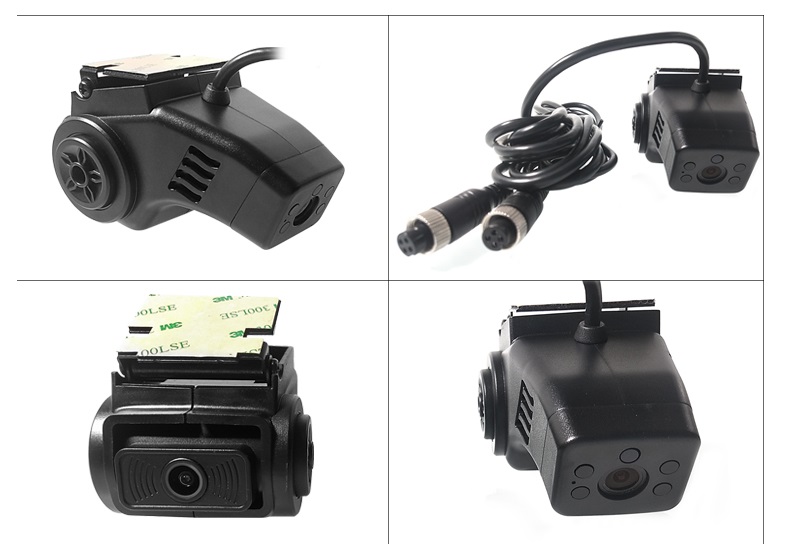

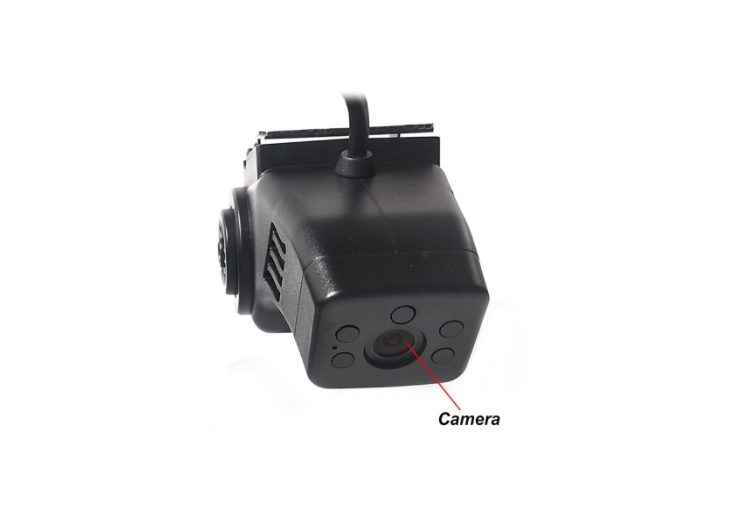

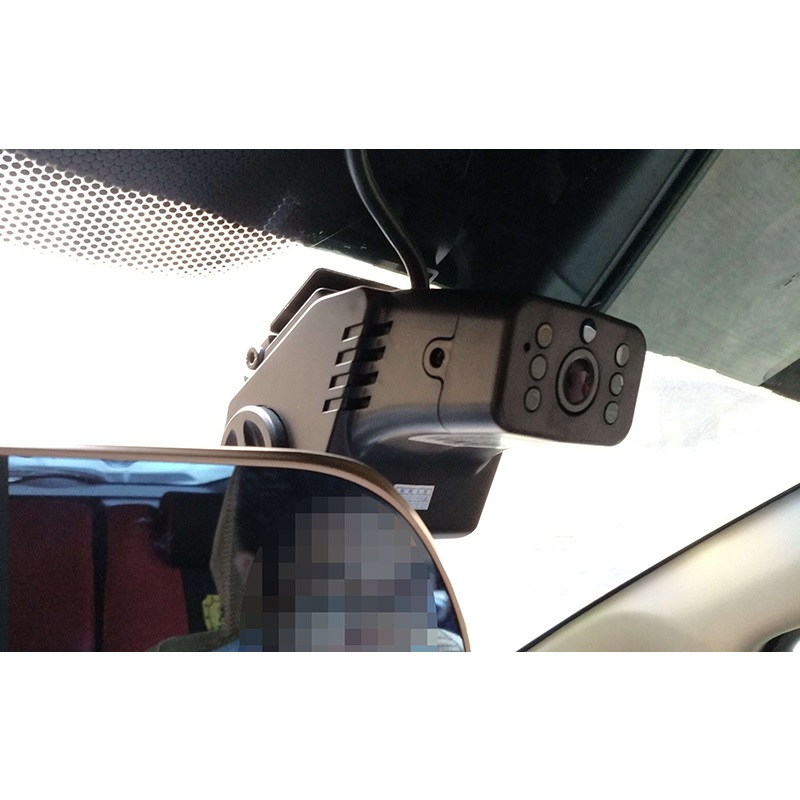

Special binocular cameras for online car hailing, taxis and private cars. The front camera adopts star level chip, which can take clearer color video under low light level. The rear camera adopts 940nm infrared to avoid damage to the driver's eyes.
Main Features:
Dual camera with one body Mini vehicle wide view camera.
It can record in the front of car(outside) and inside at the same time.
Special design for Taxi /car /Suv/Truck inside use.
Horizontal view angle:130 degree,can synchronous take driver and passenger’s video recording.
Excellent night-vision,clear image,little noise.
Built-in microphone (pickup)
4Pin aviation connector, direct power supply by vehicle MDVR, no external cable power supply.
Product Technical Parameters:： |
||
Item |
Parameters |
Performance |
System |
Image sensor |
1/3 2MP progressive scan Exmor CMOS |
|
Signal system |
PAL/NTSC |
|
Front View Cam |
High-resolution CMOS,2.8m lens |
|
Inside View Cam |
High-resolution CMOS,2.1m lens |
|
Minimum illumination |
0Lux/F1.2 |
|
Night vision distance |
3-15m |
|
White balance |
Automatic switching |
|
Shutter speed |
1/50/1/60-1/15000seconds |
|
Video output |
4PIN aviation interface, composite video 1.0vpp/75 Ω |
|
Signal/noise ratio： |
≥44dB |
|
Exposure mode |
Electronic exposure |
|
Gamma correction |
0.45 |
|
Backlight compensation |
Automatic |
|
Day night conversion |
IR-CUT automatically switch |
|
Waterproof |
IP67 |
|
View angle |
100 Degree |
other |
Power supply |
DC：12V |
|
Operating current |
100-200mA |
|
Power Consumption |
1-2W |
|
Operating temperature |
-20 --- 70℃ |
|
weight |
0.30KG |
|
Dimension |
110mm*72mm*63mm |
