It has the characteristics of true color, image clarity and so on. Factory standard configuration: 9 φ5 Taiwan Dingyuan infrared lamps, 2.8mm 2 megapixel IR lens.
Main Features:
AHD HD module，Max. resolution 2MP(1920×1080 @ 30fps)
High effective IR leds, long service life, IR distance can reach 3-15m。
Day/Night(Auto ICR)，Support smart IR, Prevent infrared overexposure at night
Auto electronic shutter
Support DWDR, 3D DNR
Waterproof IP68
Side view insallation
4Pin aviation connector, direct power supply by vehicle MDVR, no external cable power supply.
Product Technical Parameters:： |
||
Item |
Parameters |
Performance |
System |
Image sensor |
1/2.8"SONY 2MP progressive scan Exmor CMOS |
|
Signal system |
PAL/NTSC |
|
Effective pixel |
1920×1080 |
|
Horizontal definition |
1080P |
|
Minimum illumination |
0Lux/F1.2 |
|
Night vision distance |
3-15m |
|
White balance |
Automatic switching |
|
Shutter speed |
1/50/1/60-1/15000seconds |
|
Video output |
4PIN aviation interface, composite video 1.0vpp/75 Ω |
|
Signal/noise ratio： |
≥44dB |
|
Exposure mode |
Electronic exposure |
|
Gamma correction |
0.45 |
|
Backlight compensation |
Automatic |
|
Day night conversion |
IR-CUT automatically switch |
|
Waterproof |
IP68 |
|
View angle |
120 Degree |
other |
Power supply |
DC：12V |
|
Operating current |
100-200mA |
|
Power Consumption |
1-2W |
|
Operating temperature |
-20 --- 70℃ |
|
weight |
0.2KG |
|

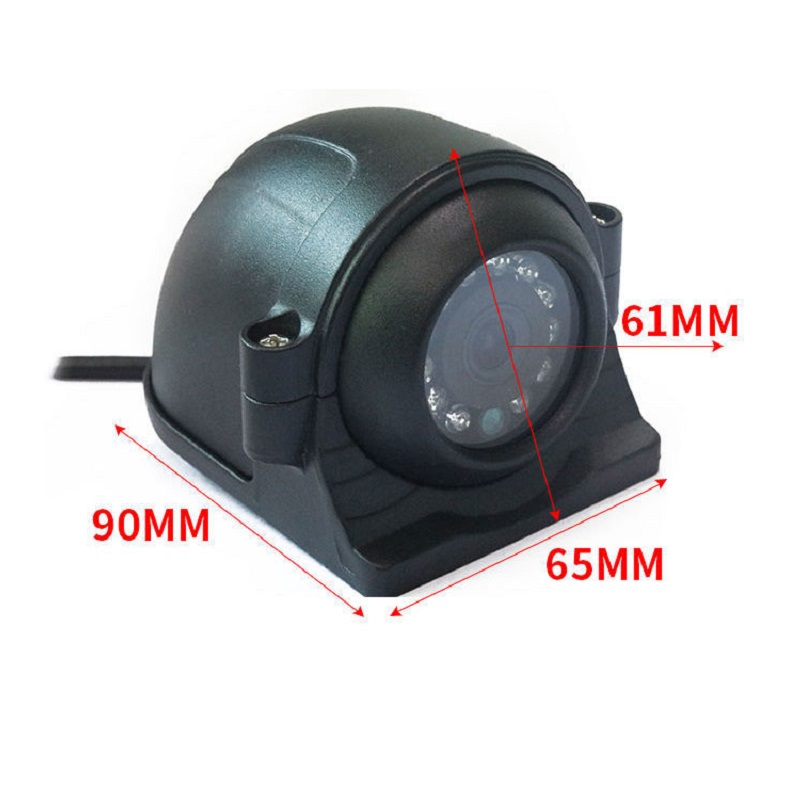

Dimension |
48*90*72（mm) |
