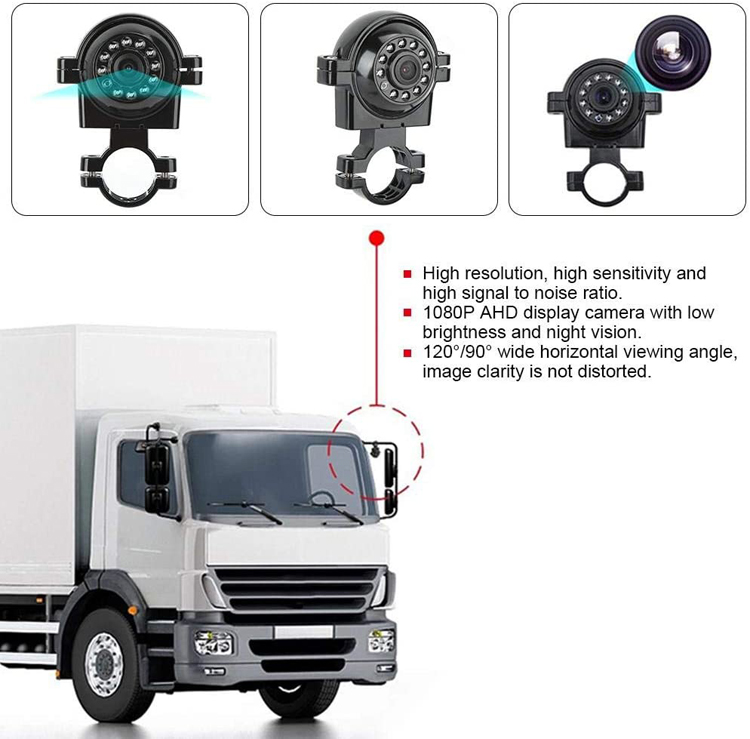

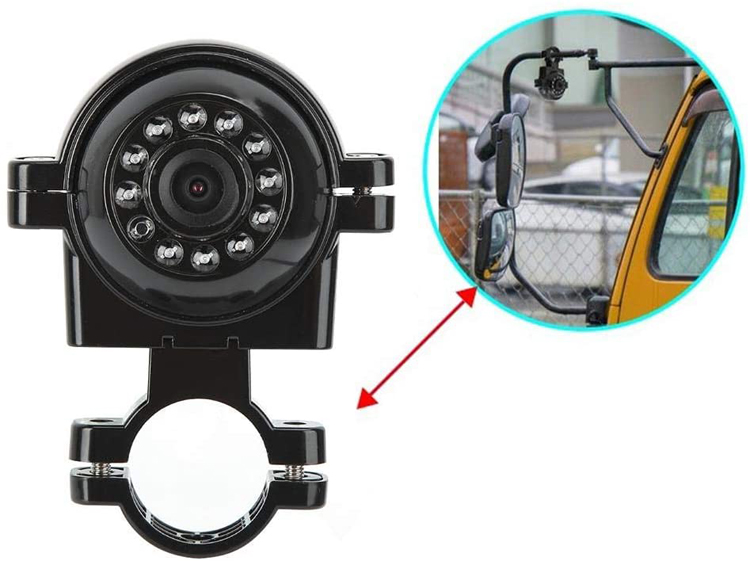

Use high performance cmos sensors,resolution up to 11920*1024 pixel,wide angle of visibility. It is generally installed on the rear-view mirror bracket.
Main Features:
AHD HD module，Max. resolution 2MP(1920×1080 @ 30fps)
High effective IR leds, long service life, IR distance can reach 3-15m。
Day/Night(Auto ICR)，Support smart IR, Prevent infrared overexposure at night
Auto electronic shutter
Metal enclosure
Waterproof IP67
With 360 Degree Rotation

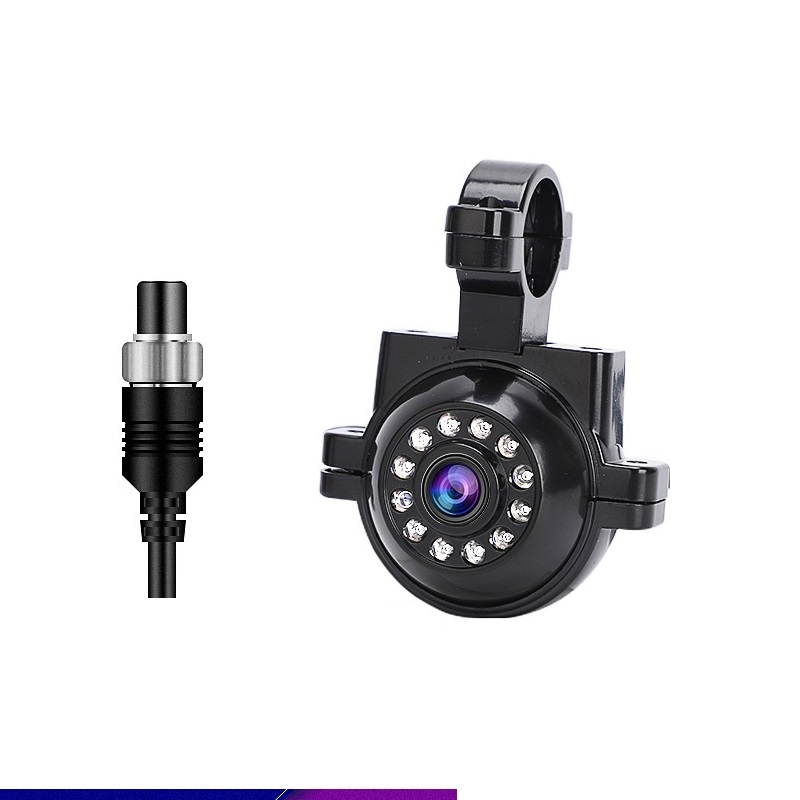

4Pin aviation connector, direct power supply by vehicle MDVR, no external cable power supply.
Product Technical Parameters:： |
||
Item |
Parameters |
Performance |
System |
Image sensor |
1/3 2MP progressive scan Exmor CMOS |
|
Signal system |
PAL/NTSC |
|
Effective pixel |
1920×1080 |
|
Horizontal definition |
1080P |
|
Minimum illumination |
0Lux/F1.2 |
|
Night vision distance |
3-15m |
|
White balance |
Automatic switching |
|
Shutter speed |
1/50/1/60-1/15000seconds |
|
Video output |
4PIN aviation interface, composite video 1.0vpp/75 Ω |
|
Signal/noise ratio： |
≥44dB |
|
Exposure mode |
Electronic exposure |
|
Gamma correction |
0.45 |
|
Backlight compensation |
Automatic |
|
Day night conversion |
IR-CUT automatically switch |
|
Waterproof |
IP67 |
|
View angle |
100 Degree |
other |
Power supply |
DC：12V |
|
Operating current |
100-200mA |
|
Power Consumption |
1-2W |
|
Operating temperature |
-20 --- 70℃ |
|
weight |
0.2KG |
|
Dimension |
53*36*57（mm) |
