M701, which is a panoramic Driving Recorde, has 360°real-time viewing and video recording function. Through 4 wide-angle cameras installed inside/outside the vehicle, the images around the vehicle are gathered, and the video and audio signals are transmitted to M701 device in real time. With the help of this system, the driver can see the obstacles and pedestrians around the vehicle intuitively, and effectively reduce the occurrence of scrape, collision, collapse and other accidents.
This supper hd night vision 360 degree surround view system can get real surround vision of driving and parking,help to avoid blind spots and secure driving safety!It's applicable for almost all types of vehicle which including Buses/Trucks/Lorries/Limousines/Tank sand.
Main Features:
3D video de-interlacing and noise reduction technology for CVBS/AHD decoding.
IPS hard screen, 4-segment display 。
Starlight night vision, intelligent sensitivity.。
8-36v Wide voltage design .
Support seamless cycle recording, over-write first file if memory is full.

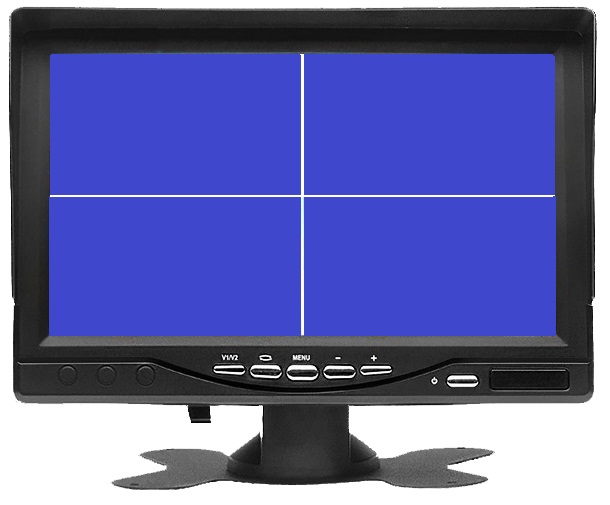

7 inch IPS Screen, resolution is 1024x600
Glue pouring technology, IP68 waterproof.
|
360° panoramic visual system parameter |
|
|
Size |
longth*width*height=175*115*26MM， |
|
Weight |
4KG |
|
Opration voltage |
Wide voltage:8-36V |
|
Working current |
The maximum working current is about 800mAa at DC 24V. |
|
|
The maximum working current is about 1.5A at DC 12V. |
|
Function |
1、Four Channel HD video. 2、Circular video, video format is avi. 3、360° panoramic view,170° wide viewing angle Camera. 4、IP67 waterproof camera. 5、Starlight night vision.. |
|
Operating temperature |
-30℃~+70℃。 |
|
Storage temperature |
-40℃~+85℃。 |
|
The length of the wire |
5M*3,15M*1 |
|
Screen |
IPS ,1024*600 |
|
Memory card type |
SD Card，MAX:256GB |
|
Effective pixel |
4channel: 1920*1080 |
|
Video file size |
1.2 GB/Hr |
|
Video frame rate |
30fps |
|
Video signal |
1.0 VPP/75 Ohm |
|
video files storge |
A single video file can be defined for 5-10-30 minutes. |
|

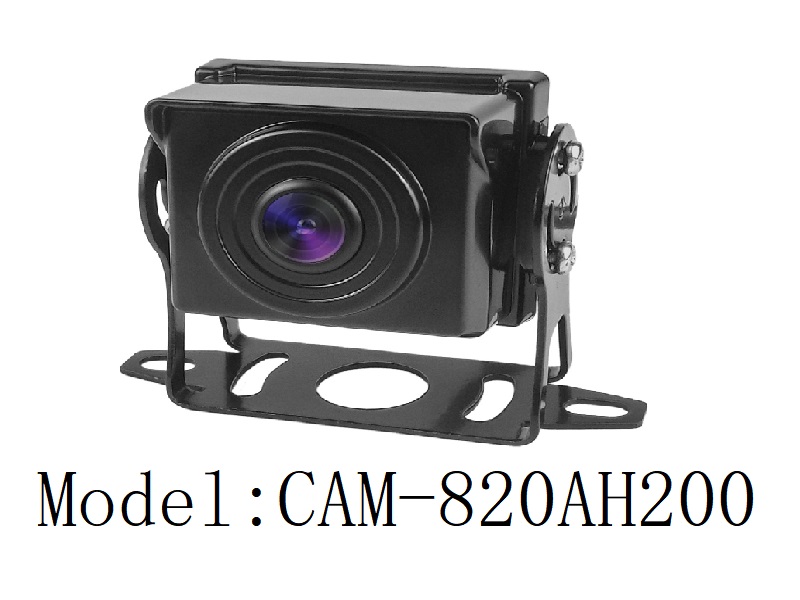

Camera parameters |
|
|
Input voltage |
DC12V ,300mA |
|
Camera power consumption |
1-2W |
|
Operating temperature |
-20℃~+70℃。 |
|
Storage temperature |
-40℃~+85℃。 |
|
Camera resolution |
AHD 1920*1080;1280*720；1280*960 (optional) |
|
Frame Rate |
30fps |
|
Video signal |
1.0Vpp/75 Ohm |
|
Boot time |
200ms |
|
Waterproof grade |
IP67。 |
|
Visual angle |
170 degreee |
|
Effective pixel |
AHD 1920*1080;1280*720P；1280*960P |
|
Minimum illumination |
0.01 Lux。 |
