High quality heating parts are selected to effectively prevent frost and mist in the whole shell due to heating. The integrated structure of upper and lower spindles is adopted, so that the PTZ camera and infrared lamp board will not be dislocated due to turbulence. The original voltage regulator module is equipped as standard to filter the transient unstable current of the vehicle. The high-speed rotation of PTZ is smooth, and the low-speed rotation has no jitter. Ultra high strength aluminum alloy design. The degree of protection is IP67. The infrared night vision distance is 80 meters. Image quality and clarity. The platform is monitored in all directions.

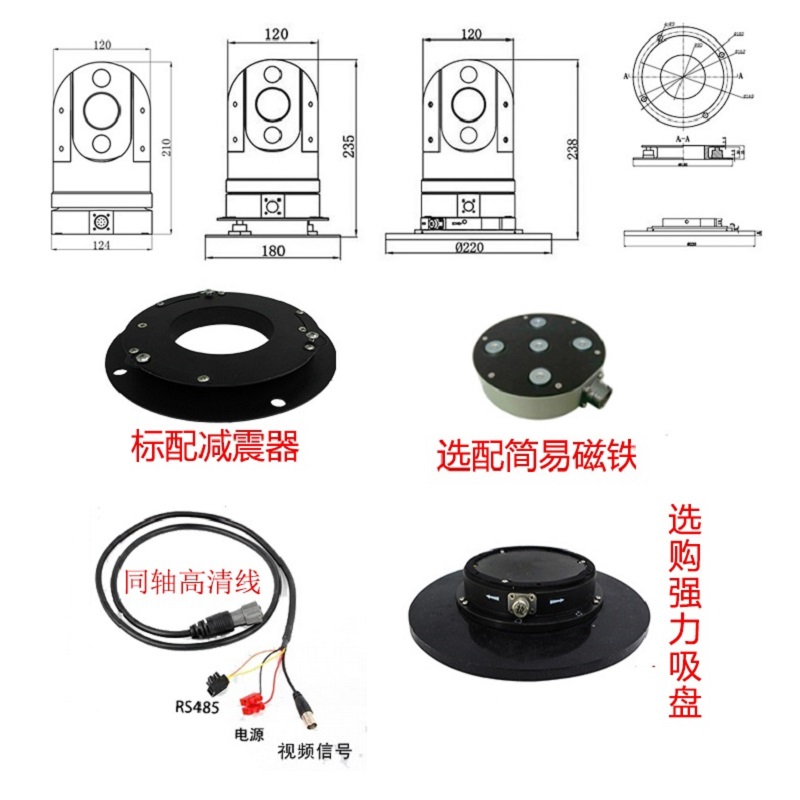

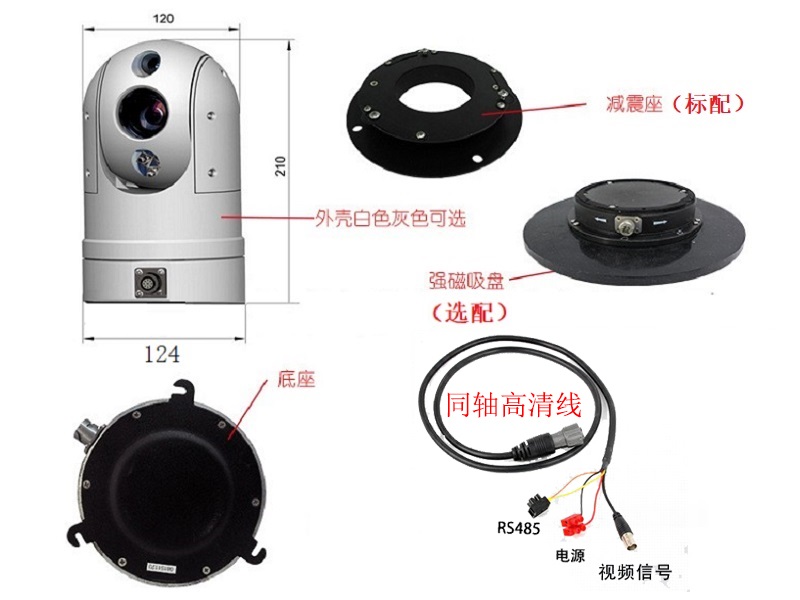

There are three installation methods for PTZ:

Bottom shock absorber: It can be installed on the roof of the car with the car shelf.(default).

Magnet attached at the bottom, placed on tripod for field survey.

The bottom is attached with a strong magnet plate, which is directly and strongly adsorbed on the top of the car.

Product Features:

 It adopts dot matrix infrared lamp imported from Germany, night vision distance is 80m ,the video is clear.

 Built in professional wide voltage voltage stabilized circuit to ensure the long-term stable operation of the device.

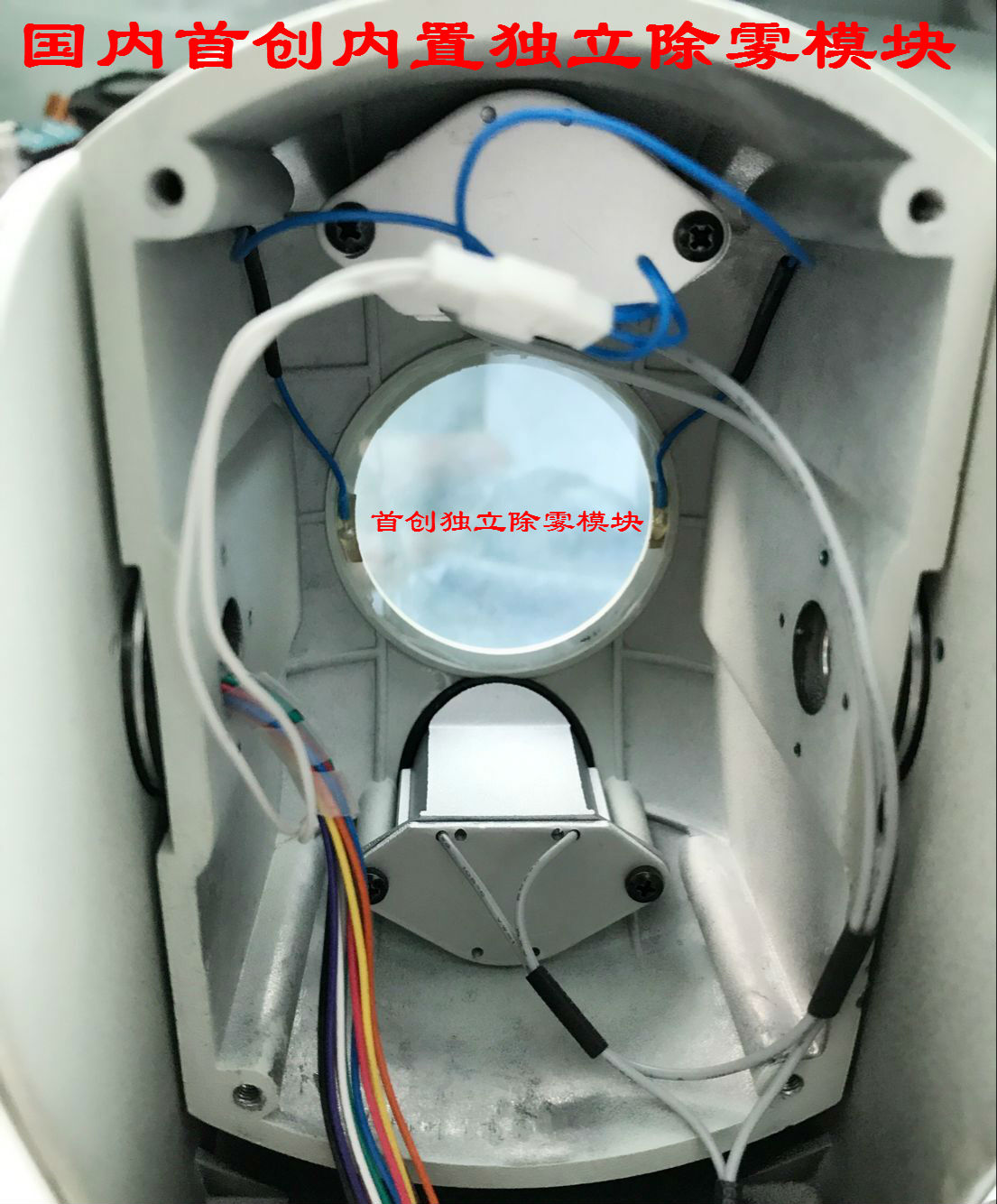

 Built in demisting, defrosting, temperature control and heating device.

PTZ:

 Built-in high-intensity OSRAM chips, it could achieve the further distance surveillance.

 Precision 0.9°motor-driven, more stable and low speed control smoothly without jitter.

 Using industrial-grade components, and it is suitable for bad weather environment.

 With powerful magnet for portable outdoor vehicle monitoring.

 Zoom: 20x optical zoom

 Horizontal Rotation: 360°Continuously rotation

 Vertical Rotation: -90°-45°Tile range

 High strength aluminum alloy investment casting shell, anti impact, anti-corrosion, protection grade up to IP67.
